Face – AiFace-Arion

Essl  – AiFace-Arion

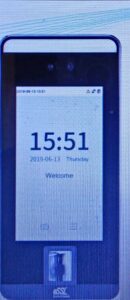

Secure & Streamline Access with AiFace-Arion Face Recognition Access Control System – Expertly Integrated by Armour Consulting LLP

At Armour Consulting LLP , a trusted system integrator for biometric solutions in Mumbai, Thane, and Navi Mumbai, we deliver advanced access control systems tailored to modern business needs. The AiFace-Arion Face Recognition Access Control System is a high-performance device designed for enterprises requiring multi-factor authentication, robust security, and seamless integration. With a sleek design, dual biometric options, and support for large-scale deployments, AiFace-Arion ensures secure, efficient access management for corporate offices, industrial facilities, and retail spaces.

Why Choose AiFace-Arion?

The AiFace-Arion combines cutting-edge biometric technology with flexible deployment options, making it ideal for businesses prioritizing security and scalability:

  1. Multi-Layered Security
    • Four Authentication Methods : Face recognition, fingerprint scanning, RFID card access, and password entry via a virtual keypad .
    • Face Template Capacity : 6,000 (1:N).
    • Fingerprint Capacity : 6,000 (1:N).
    • Card Capacity : 10,000 (1:N) with support for 125 kHz proximity cards , Mifare IC cards (13.56 MHz) , and optional HID Prox/iClass for hybrid environments.
  2. Ultra-Fast Biometric Recognition
    • Facial Recognition Speed : < 1 second (touchless recognition at distances of 1cm to 100cm ).
    • Fingerprint Recognition Speed : < 0.3 seconds.
    • Accuracy :
      • False Acceptance Rate (FAR) : ≤ 0.01% (face), ≤ 0.0001% (fingerprint).
      • False Rejection Rate (FRR) : ≤ 0.02% (face), ≤ 0.01% (fingerprint).
  3. WDR Low-Light Camera for Precision
    • 2MP Wide Dynamic Range (WDR) Camera : Ensures clear facial capture in low-light or backlit environments.
  4. Linux OS & Powerful Hardware
    • Dual-Core 1GHz CPU , 1GB RAM , 8GB ROM for smooth performance.
    • Linux-based stability ensures minimal downtime and resistance to cyber threats.
  5. User-Friendly Interface
    • 5-inch High-Resolution Display for real-time feedback, easy navigation, and clear visual confirmation.
  6. Scalable & Future-Ready
    • Transaction Capacity : 200,000 logs for audit trails.
    • Supported Software : eTimetracklite for time attendance and centralized access control management.

Technical Specifications

Feature
Specification
Display
5-inch Touchscreen
Camera
WDR Low-Light Camera @ 2MP
Authentication Methods
Face, Fingerprint, RFID Card, Password (Virtual Keypad)
Biometric Capacities
Face: 6,000
Recognition Speed
Face: < 1s (touchless)
Security Metrics
FAR: Face ≤ 0.01%
RFID Support
125 kHz Proximity (Standard), 13.56 MHz Mifare, HID Prox/iClass (Optional)
Connectivity
TCP/IP, Wi-Fi, Wiegand (1 in/1 out), RS485
Access Control Interface
Electromagnetic Lock/Electric Lock Output, Door Sensor, Exit Button, Alarm Output
Power Supply
DC 12V 3A
Operating Conditions
Temperature: -10°C to 45°C<br>Humidity: 10–90% RH (non-condensing)
Dimensions
3.62” x 7.99” x 0.85”(91.93mm x 202.93mm x 21.5mm)

Applications Across Mumbai, Thane & Navi Mumbai

  • Corporate Offices : Secure high-traffic entry points with touchless facial recognition.
  • Banks & Financial Institutions : Combine face/fingerprint with HID cards for critical zones.
  • Industrial Units : Restrict access to sensitive areas with multi-factor authentication.
  • Hospitals & Data Centers : High-speed recognition for restricted zones.

Why Partner with Armour Consulting LLP as Your System Integrator?

As a trusted system integrator in Mumbai, we specialize in deploying and maintaining biometric solutions tailored to your operational needs:

  • End-to-End Integration : Seamless installation with existing security systems (CCTV, alarms, etc.).
  • Local Expertise : Optimized solutions for Mumbai’s climate and infrastructure.
  • Competitive Pricing : Direct partnerships with manufacturers ensure cost-effective deployments.
  • 24/7 Support : On-site service and remote assistance for uninterrupted operations.

Download the AiFace-Arion Datasheet

For detailed technical diagrams and software compatibility, download the PDF datasheet (Aiface-Arion).
